At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!
A flat sheet of material is not actually produced by steel mill as a flat sheet. In reality, a flat sheet of material starts its life as part of a coil of material. A Cut-To-Length Line will uncoil the material, level it, and then cut it to the required length and stack it. The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance. When considering a Cut-To-Length and the proper line configuration for your application, there are several variables you should consider: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.
Main Specification
Light Duty Cut to length Machine Line
Model | 0.3-2.0×800 | 0.3-2.0×1250 | 0.5-3.0×1250(1600) |
Coil Material | δs≤230N/mm2, Cold-rolled Coil, Stainless Steel Coil, Galvanized Coil | ||
Coil Thickness | 0.3~2.0mm | 0.3~2.0mm | 0.5~3.0mm |
Coil Width | 300~800mm | 800~1250mm | 800~1250mm(1600mm) |
Coil Weight | ≤10 tons | ≤20 tons | ≤20(25) tons |
Coil ID | ф508mm | ф508mm | ф508mm(ф610mm) |
Coil OD | ≤ф1800mm | ≤ф1800mm | ≤ф1800mm |
Cutting length | 300~3000mm | 300~4000mm | 300~4000mm |
Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
Line Speed | 0~100m/min | 0~100m/min | 0~100m/min |
Control System | PLC | PLC | PLC |

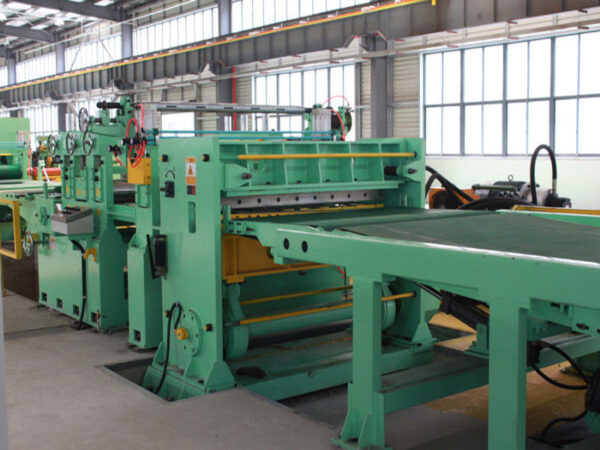

Heavy Duty Cut to length Machine Line
Model | 1-6×1600 | 3-12×2000 | 4-16×2100 | 8-25×2300 |
Coil Material | δs≤230N/mm2, Hot-rolled Coil, Stainless Steel Coil | |||
Coil Thickness | 1.0~6.0mm | 3.0~12.0mm | 4.0~16.0mm | 8.0~25.0mm |
Coil Width | 800~1600mm | 800~2000mm | 1000~2100mm | 1000~2300mm |
Coil Weight | ≤25 tons | ≤25 tons | ≤30 tons | ≤40 tons |
Coil ID | ф508 & 610 & 760mm | ф610~ф820mm | ф610~ф820mm | ф610~ф820mm |
Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm | ≤ф2200mm |
Cutting length | 500~6000mm | 500~12000mm | 500~12000mm | 500~12000mm |
Cutting Accuracy | ±1.0mm | ±1.5mm | ±1.5mm | ±2.0mm |
Line Speed | 0~35m/min | 0~25m/min | 0~25m/min | 0~20m/min |
Control System | PLC | PLC | PLC | PLC |

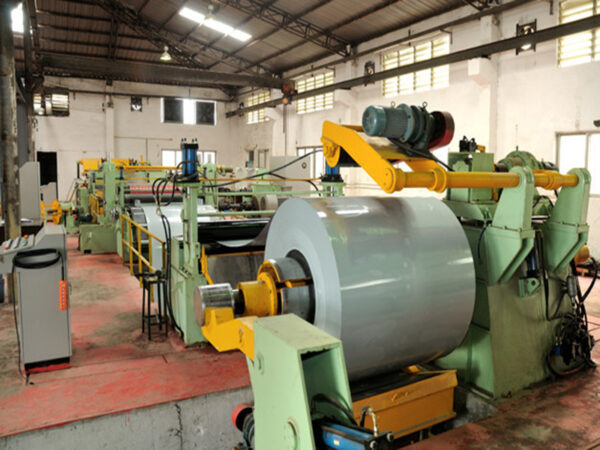

High speed fly shear cut to length line
Model | 0.25-2×1250 (1600) | 0.5-2.5×1250 (1600) |
Coil Material | Copper coil, Aluminum coil, Stainless Coil, Galvanized Coil | |
Coil thickness | 0.25~2mm | 0.5~2.5mm |
Coil width | 300~1250mm(1600mm ) | 300~1250mm(1600mm ) |
Coil weight | ≤20T (25T) | ≤20T (25T) |
Coil ID | φ508mm | φ508mm |
Coil OD | ≤φ1800mm | ≤φ1800mm |
Cutting Accuracy | ≤±0.5mm | ≤±0.5mm |
Line Speed | 70~100m/min | 70~100m/min |
Electrical Control System | PLC | PLC |
Pickling coil Cut to length line
Model | 1.0-6.0×1250 | 1.0-6.0×1600 (1800) | 1.0-6.0×2000 |
Coil material | Pickling coil | ||
Coil thickness | 1.0~6.0mm | 1.0~6.0mm | 1.0~6.0mm |
Coil width | 500~1250mm | 500~1600mm(1800mm) | 500~2000mm |
Coil weight | ≤20T | ≤25T (28T) | ≤30T |
Coil ID | ф508 ф610 ф760mm | ф508 ф610 ф760mm | ф508 ф610 ф760mm |
Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm |
Length range | 750~6000mm | 750~6000mm | 750~6000mm |
Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
Line speed | 0~60m/min | 0~60m/min | 0~60m/min |
Electrical control | PLC | PLC | PLC |
Technical process:
1: Coil saddle
2:Loading car
3:Hydraulic cantilever arm uncoil + hydraulic support
4:Guiding plat for feeding device
5:Pinch and 4-hi leveling machine
6:Loop
7:Side guiding & deviation correcting device
8:Pinch & 5 roller fine leveler
9:Pneumatic shearing machine
10:Belt conveyor
11:Pnumatic discharging frame
12:X type lifting table
13:Unloading car
14:Hydraulic system
15:Pneumatic system
16:Electrical control system
Certificate
Main Customers
FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
A: You have to inform us following details:
– The pipe material
– Round pipe range
– Square pipe range
– Rectangle pipe range
– Wall thickness range
– The pipe usage
3) Q: How to choose the Roll Forming Machine?
A: You have to inform us following details:
– Coil material
– Coil thickness
– Coil weight
– Cutting type
– Profiles drawings
– Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
A: You have to inform us following details:
– Coil material
– Coil thickness
– Coil width
– Coil weight
– Finished sizes
– Other special attention
55) Q: Where is the nearest airport to your company?
A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
A: Before sales:
– Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
– Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
– Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
– Installation and commissioning: TGMCO will send our technicians to customer’s workshop for supervision of installation and commission
Training of Customers’ technician/workers during commission
– Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer’s site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements
